House Part 2

#declare Wall_Texture_1 =
texture{ pigment{color rgb<1,1,1>*1.1}
         normal {bumps 0.5 scale 0.005}
         finish {ambient 0.15 diffuse 0.85}
       } // end of texture
#declare Wall_Texture_2 =
texture{ pigment{color  rgb<1,1,1>*1.1}
         finish {ambient 0.15 diffuse 0.85}
        } // end of texture
//-------------------------------------------

#declare Wd = 0.20 ; //  thickness of the wall

// How to cave out the inside:

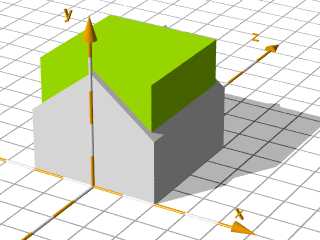

difference{ //-------------------------------
box { <-Hx,0,0>,< Hx,Hy,Hz>
      texture { Wall_Texture_1}
    } // end of box -------------------------
plane{ <0,-1,0>,0
       texture { Wall_Texture_2}
       rotate<0,0,Roof_Angle>
       translate<0,Hy,0>
     } // end of plane ----------------------
plane{ <0,-1,0>,0
       texture { Wall_Texture_2}
       rotate<0,0,-Roof_Angle>
       translate<0,Hy,0>
     } // end of plane ----------------------

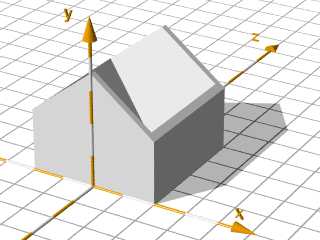

 // inside caved out
box { <-Hx+Wd,0.10,Wd>,<Hx-Wd,Hy,Hz-Wd>
      texture {Wall_Texture_2}
     }
}// end of difference -----------------------

#declare Roof_Texture =  // -------
// layered textures !!!  - überlagerte Texturen
texture{ pigment{color rgb<0.55,0.09,0.09>*1.3}
         normal {gradient z scallop_wave
                             scale<1,1,0.15>}
         finish {ambient 0.15 diffuse 0.85}
       } // end of texture

texture{ pigment{ gradient x
                  color_map{
                  [0.00 color rgbt<1,1,1,1>]
                  [0.90 color rgbt<1,1,1,1>]
                  [0.95 color rgb<1,1,1>*0.1]
                  [1.00 color rgb<1,1,1>*0.1]}
                  scale 0.25}
          finish {ambient 0.15 diffuse 0.85}
       } // end of texture
//---------------------------- end of roof texture
#declare Roof_D = 0.10; // thickness of the roof
#declare Roof_O = 0.20; // overhang
#declare Roof_L = Hx+0.80;//  try it!

//-------- parts of the roof: first horizontal,
//  then sloped and translated upways

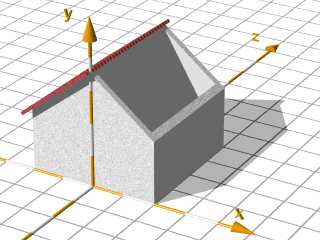

box{  // left part of the roof
 <-Roof_L,0,-Roof_O>,<Roof_D/2,Roof_D,Hz+Roof_O>
 texture {Roof_Texture translate<-0.05,0,0>}
 rotate<0,0, Roof_Angle>
 translate<0,Hy,0>
}
box{ // right part of the roof
 <-Roof_L,0,-Roof_O>,<Roof_D/2,Roof_D,Hz+Roof_O>
 texture {Roof_Texture translate<-0.05,0,0>}
 rotate<0,0, Roof_Angle>
 translate<0,Hy,0>
 scale<-1,1,1> // mirrowed in x direction!!!
}
//--------------------------------------- end of the roof
